Technical Specifications:
- Details
-
Patient Transport Stretcher is for use in hospitals, health centre and clinics for patient transferring, patient infusion and examination.
Bed Functions
● Back section: 0-90°
● Hi-low movement: 58-91cm
● Trendelenburg & reverse-trendelenburg: 16°
Operational Characteristics
● Patient surface: L198*W71cm
● Entire railings, and collapsible, size is H42.5 cm*L 148 cm; Top is aluminum, column is 304 stainless steel, base frame is steel painted, and all will be thickened.
● Freehand trendelenburg operations, pedals at both sides.
● Pedal for elevation control and trendelemburg / reverse trendelemburg located on both sides of the stretcher.
● Centralized foot controls at the ends or corners of the stretcher for brake and steering.
● Wheel diameter 20 cm of easy movement with central brake system on all four wheels.

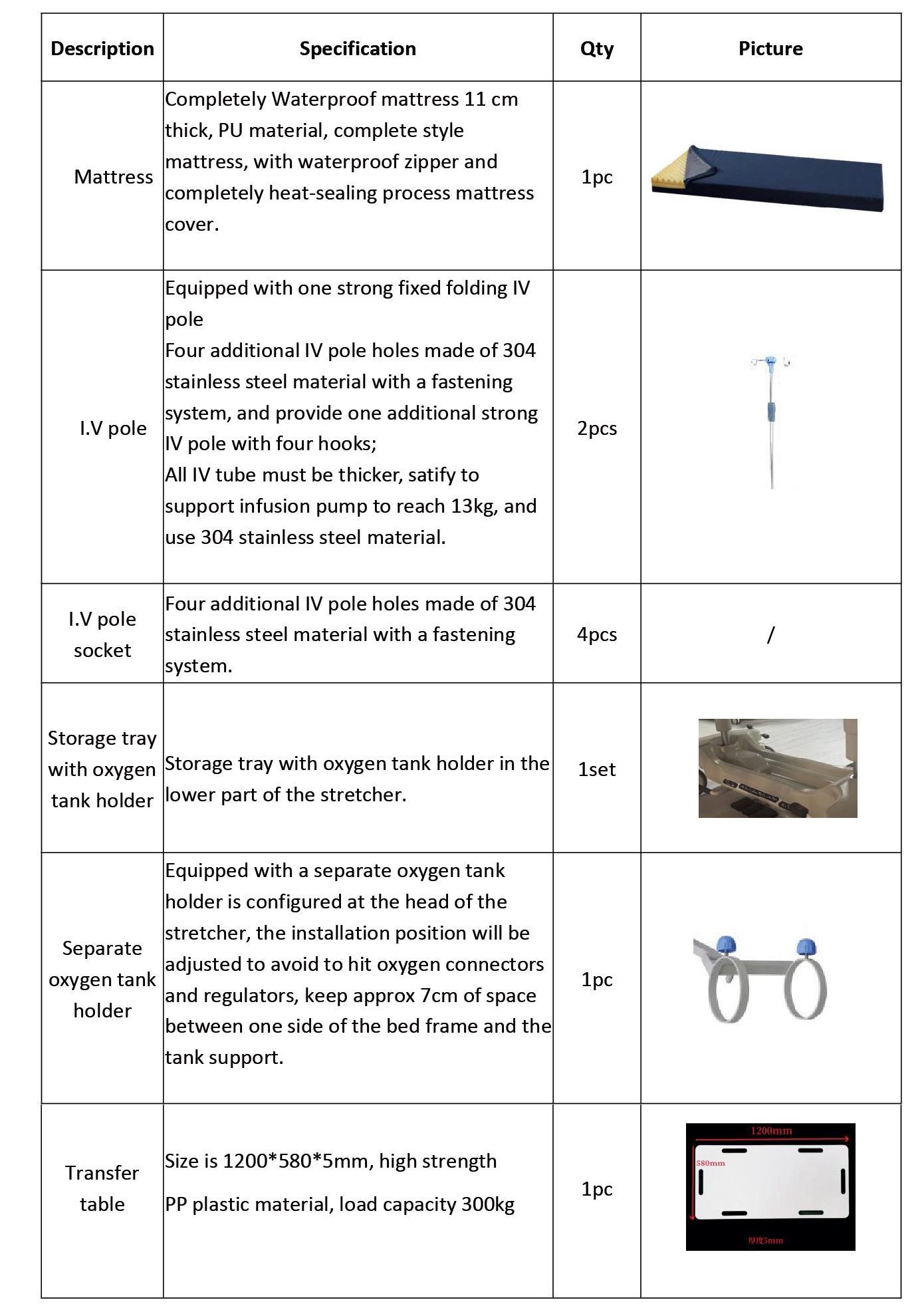

● Completely Waterproof mattress 11 cm thick, PU material, complete style mattress, with waterproof zipper and completely heat-sealing process mattress cover.
● Central wheel mechanism for easy movement, supplied with the fifth wheel for steering, in addition to the fifth wheel, it will have a directional wheel (any of the 4 side wheels).
● Storage tray with oxygen tank holder in the lower part of the stretcher, and equipped with a separate oxygen tank holder is configured at the head of the stretcher, the installation position will be adjusted to avoid to hit oxygen connectors and regulators, keep approx 7cm of space between one side of the bed frame and the tank support.
● Equipped with one strong fixed folding IV pole, four additional IV pole holes made of 304 stainless steel material with a fastening system, and provide one additional strong IV pole with four hooks; All IV tube must be thicker, satify to support infusion pump to reach 13kg, and use 304 stainless steel material.
● Rubber bumper protection system in the four corners.
● Double pedestal system, at both side of the trolley.
● That can support weight is 250 kg.
● Patient transfer system(transfer table 1200*580*5mm), which allows the same without physical effort of the one who performs it.
Certificate: CE, FDA, ISO13485, ISO9001, FSC
