Technical Specifications:
- Details
-
Bed Functions
1. Back section: 0-70°
2. Leg section: 0-25°
3. Hi-low movement: 470-760mm
4. Auto contour function.
5. Trendelenburg & reverse-trendelenburg: 12°
6. Vascular position
7. Electric One-button to achieve CPR quick release for the whole bed.
8. Manual CPR handle for back section quick release.
Operational Characteristics
1. Size of sleeping surface: L2050*W900mm
2. ABS material bed head and foot boards shaped by below molding, removable, easy for cleaning and disinfection.
3. HPL sleeping surface, translucent for X-ray.
4. Four pieces ABS material adjusting side rails, comply to safety standard IEC/EN60601-2- 52. Reasonable gap between the front and back pieces, moving together with the bed function, maximum ensure the safety of patient, avoid clamp injury to nursing staff and patients.
5. Whole structure is steel epoxy coated finish material.
6. Built-in control panels on two sides of the side rails for nursing staff and patient control.
7. Side rails with angle indicators to show movement angles of backrest and trendelenburg & reverse-trandelenburg .
8. With switch to lock/unlock all electric functions.
9. One piece of hand controller adjust all electric functions with locking system.
10 Built-in rechargeable back-up battery with battery charge indicator.
11. Diameter 150mm casters with central braking system , brake pedal at all four corners, abrasion resistance, steering mechanism promote a flexible movement and locking.
12. Integrated scale to determine the weight of the patient in kilograms (Kg) and pounds (Lb), with capacity up to 250 kg.
13. Protective round bumpers located at bed corners.
14. Hospital Bed Safety Working Group Standards: EN60601-2-52.
15. Loading Capacity: 250KGS.
16. Power supply 110-120 V, 60 Hz.

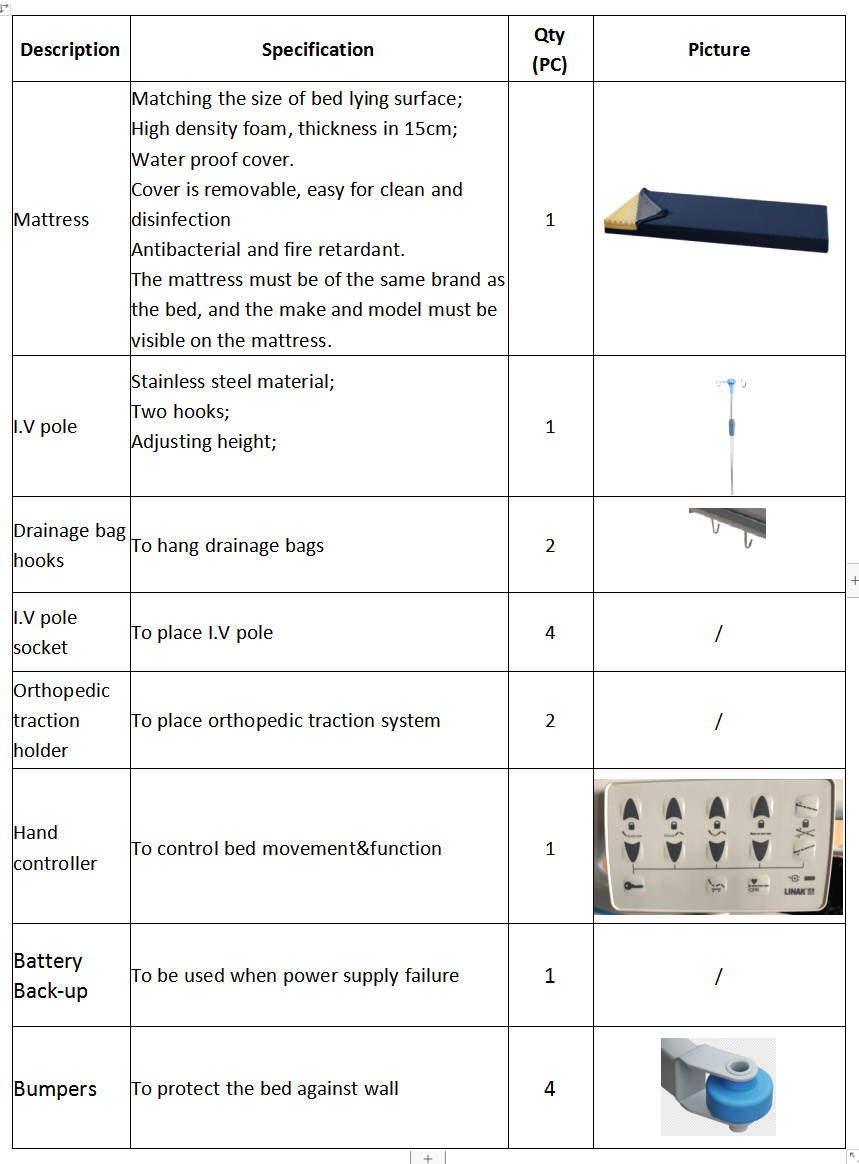

Standard Accessories:
Certificate: CE, FDA, ISO13485, ISO9001, FSC
